TRAFFIC/ITS
DATAMOVER WB
DATAMOVER MS-5 - Hardened Managed Switch
- Supported by SIMREX CRMS NMS that supports SIMREX DataMover
WB radios
- VLAN, IGMP Snooping, Spanning Tree, RSTP
- Diagnostics include seamless bandwidth monitoring and bandwidth
testing between switches and DM WB series radios
- Ethernet - Five 10/100 Mbit/s Fast Ethernet ports with Auto-MDI/X
- Hardware, switch chip and port mirror support. Shielded connectors
- One USB 2.0 port, Reset switch
- LEDs - Power, NAND activity, 5 Ethernet LEDs
- Power Options - PoE: 8-30V DC on Ether1 (Not 802.3af). DC Jack:
8-30V DC
- Power Output - Supports PoE output on ports 2-5. Max current
500mA per port
-
- DM MS-5
Specifications (171k)
- Product
Inquiry Form
DATAMOVER MS-5GS - Hardened Gigabit Managed
Switch
- Supported by SIMREX CRMS NMS that supports SIMREX DataMover
WB radios
- VLAN, IGMP Snooping, Spanning Tree, RSTP
- Diagnostics include seamless bandwidth monitoring and bandwidth
testing between switches and DM WB series radios
- Ethernet - Five 10/100/1000 Mbit/s Fast Ethernet ports with
Auto-MDI/X. Hardware, switch chip and port mirror support. Shielded
connectors
- One USB 2.0 port, Reset switch
- One SFP port for fiber connectivity
- LEDs - Power, USR, SFP, 5 Ethernet LEDs
- Power Input - PoE: 12-30V DC on Ether1 (Not 802.3af). DC Jack:
12-30V DC
- Power Output - Supports PoE output on ports 2-5. Max current
1A per port. 2A max total
- MS-5GS
Specifications (169k)
- Product
Inquiry Form
DATAMOVER MSG-8E4S - Hardened Gigabit Managed
Switch
- Supported by SIMREX CRMS NMS that supports SIMREX DataMover
WB radios
- VLAN, IGMP Snooping, Spanning Tree, RSTP
- Diagnostics include seamless bandwidth monitoring and bandwidth
testing between switches and DM WB series radios
- Ethernet -Eight 10/100/1000 Mbit/s Fast Ethernet ports with
Auto-MDI/X. Hardware, port mirror support. Shielded connectors
- Four gigabit SFP ports for fiber connectivity
- Console port (RS232 RJ45)
- Reset button
- LEDs - Power, AUX, (4) SFP, (8) Ethernet, (8) POE out
- Power Input - DC Jack: 18-28VDCor 48-57VDC
- PoEOutput - Supports 18-28VDC PoE output on ports 1-8 with 28VDC
power supply. Max current 1A per port. 2.8A max total
- Supports 802.3af/at devices if the 48-57VDC input is used. Max
current 450mA per port.1.4A max total.
- MSG-8E4S
Specifications (115k)
- Product
Inquiry Form
DataMover WB Ethernet Bridged Extender Kit
48V Version
- Bridges 802.3 Ethernet cable runs up to 400m (1312 feet), runs
of Cat6 cable
- 48V POE plus 25W delivery to remote device
- Water resistant, IP67 Termination enclosure with mast clamp
- No mid-span device needed
24V Version
- Bridges 802.3 Ethernet cable runs up to 400m (1312 feet), single
runs of cable
- 24V POE Delivery to DM WB radio or SIMREX Switch
- Water resistant, IP67 Termination enclosure with mast clamp
- DM
ETHBX-48-KIT Specifications (pdf 266k)
- DM
ETHBX-24-KIT Specifications (pdf 264k)
- Product
Inquiry Form

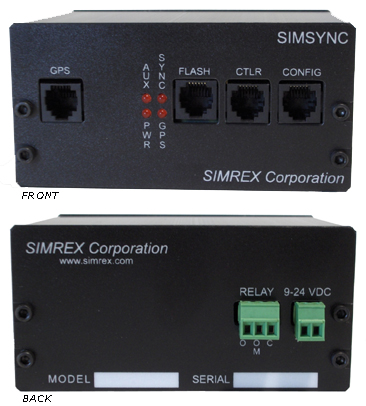

SIMSYNC: Traffic Controller Time/Date Synchronization/Coordination
- GPS based time/date synchronization of traffic controllers
- Provides synchronization even if GPS signals are blocked temporarily
- Contact closure synchronization pulse with variable pulse width
- Controller specific RS232 message protocol for Eagle, Econolite,
Peek
- Standardized RS232 controller messages AB3418, NTCIP, GPRMC
- IRIG time code version available for other applications
- Contact closure for mechanical controllers
- Flash upgradeable firmware
- 9-24VDC input voltage
- Vandal resistant GPS antenna
- SimSync
Specifications (pdf 66k)
- SimSync
Manual (pdf 388k)
- Detailed
View
- Product
Inquiry Form
SIMSYNC-RMC: Traffic Controller
Time/Date Synchronization/Coordination
- Standalone GPS for newer controllers that support GPRMC GPS
message format.
- Lower cost than full controller based Simsync.
- Same tamperproof hardened antenna as the full Simsync.
- AC or DC powered version available. (DC Shown)
- Controller specific cable provided.
- 9-30VDC input voltage
- SimSync-RMC
Specifications (pdf 65k)
- Product
Inquiry Form
DATAMOVER SS: Spread Spectrum Technology
DATAMOVER SS-IO
- 16 bits of DIO (expandable for additional digital or analog
IO).
- 20 MHz controller that can be programmed with "smarts"
for
user applications.
- 2 + serial ports for user application.
- Serial ports for configuration and Flash upgrade.
- Available with or without internal Spread Spectrum radio.
- Internal relay option.
- GPS interface capability for timing or positioning applications.
- DataMover
SS-IO Specifications (pdf 83k)
- Product
Inquiry Form
DATAMOVER 2070-TA
(ATC, ATSC or 2070
controller compatible)
Compatible with all ATC, ATSC and 2070 traffic controllers
that have an H1 card slot.
The H1 card is normally used for hosting a 6A or 7A card (serial
or FSK modem).
- ZERO FOOT PRINT. Installs directly into controller communications
board slot
- No external power supply required
- Electrically isolated from Chassis ground
- Electrically isolated coaxial RF connector for radio antenna
- An electrically isolated serial port is avaialable to be port
shared with the radio
- Second serial port has configurable routing for port sharing
purposes
- Available 900 MHz or 2400 MHz.
- DataMover
2070-TA Specifications (pdf 72k)
- DataMover 2070-TA Installation & Operations
Guide (available upon request)
- Product
Inquiry Form
DATAMOVER 170TM & 170T
DATAMOVER DETECTOR RACK (DRM)
DATAMOVER PRE-EMPT
FIRE PREEMPTION SYSTEM
- Firehouse based wireless solution
- Preempt 1 to 5 Routes
- 1 to 5 intersections per route.
- Select Route with button.
- Green ACK LED if preempt is accepted by intersection.
- Yellow link valid LEDs indicates health of nodes.
- Indoor antenna possible for firehouse.
- 900 or 2400 MHz unlicensed, secure.
- Galvanic isolation from intersection
- 25% to 35% of the cost of truck based solutions.
- 1 to 4 hours typical install.
- DataMover
Pre-Empt Specifications (161k)
- Product
Inquiry Form
|
|
|
|
